Subsea

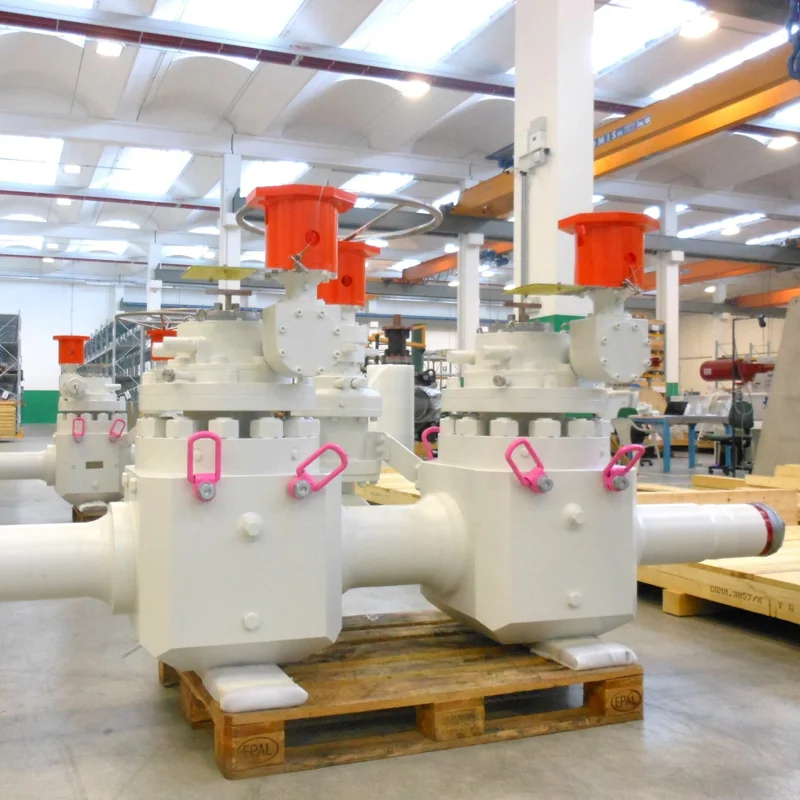

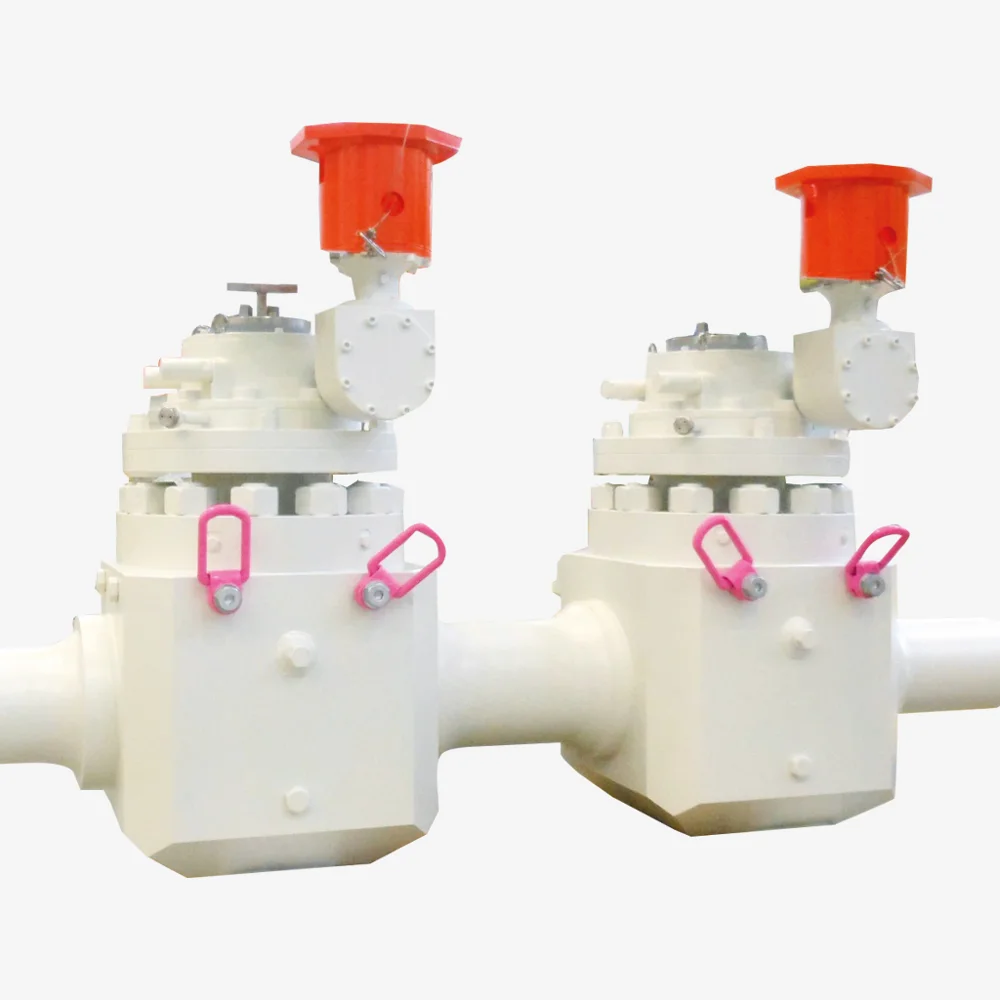

Single or double ball
Side or top entry
Full or reduced bore
From ½” to 64”
Class from 150 up to API 6A 15.000

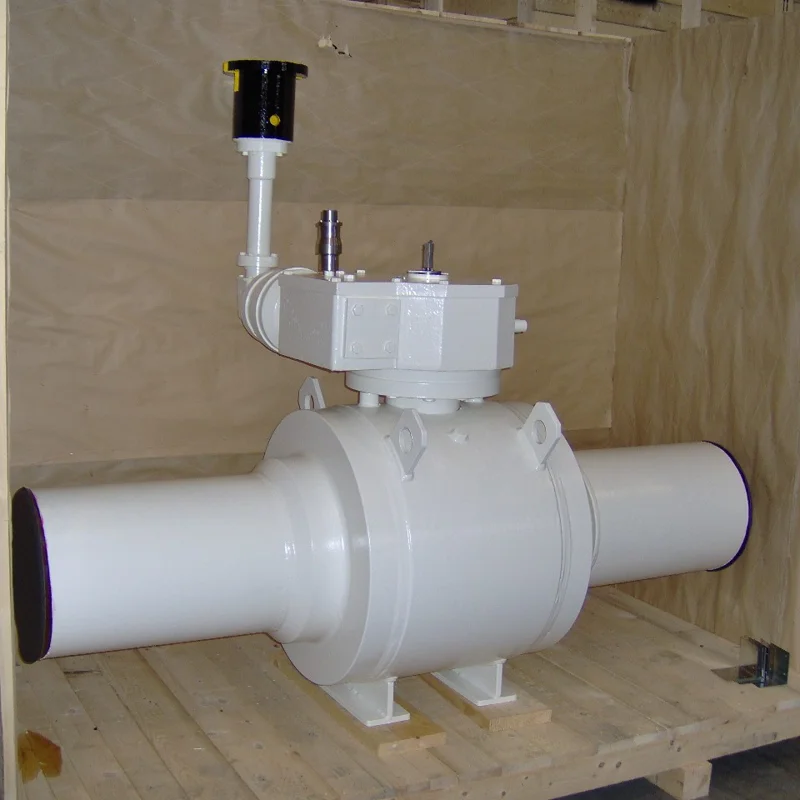

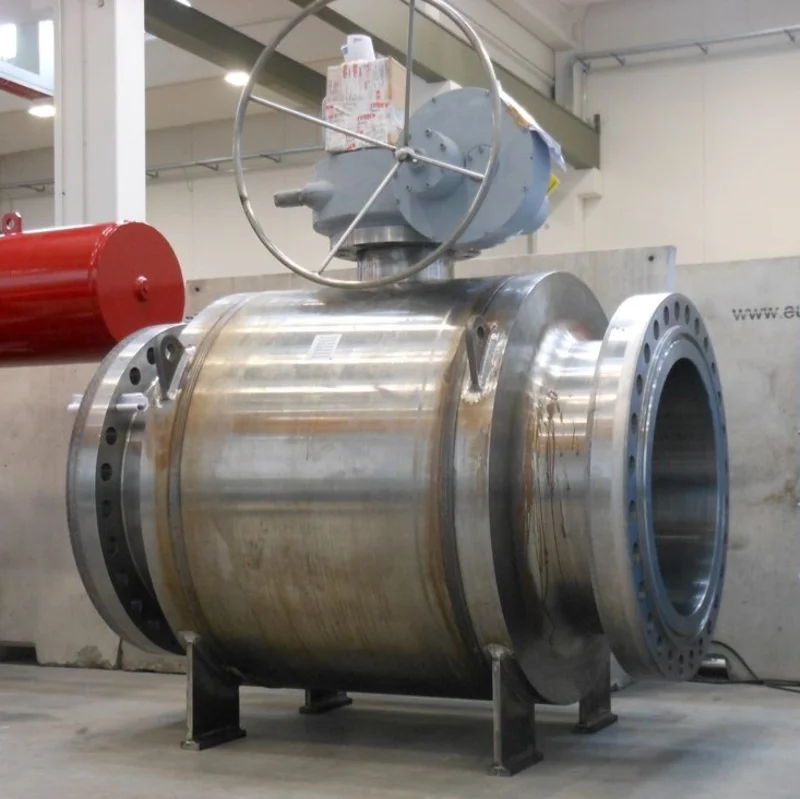

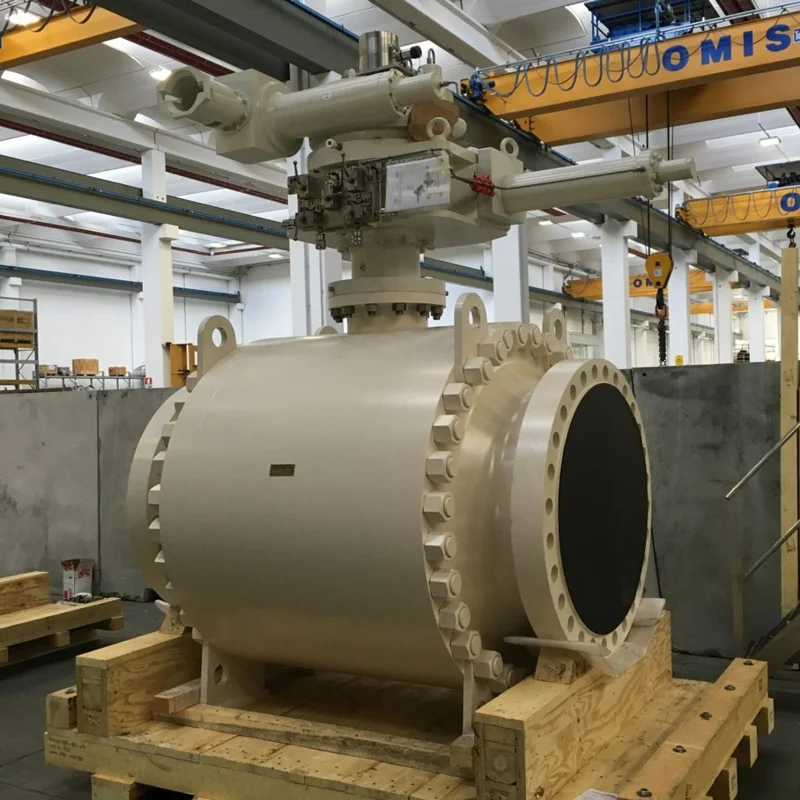

Della Foglia is one of the first worldwide companies to reach API 6DSS qualification for subsea pipeline ball valves. Special design is developed for each application in order to guarantee the required performance level for the whole predicted life of the valve.

A dedicated team takes care of the design, manufacturing and testing of custom-made valves for underwater (shallow or deep). A high-level quality control inspection & test, as well as advanced design tools (finite element simulation, fatigue analysis, computational fluidodynamic etc.) contribute to increase the performance of the valves. An internal testing facility is available to perform hydrostatic and gas tests up to 1.500 bar pressure.

Standard Features	Optional features
Design according to API 6DSS, API 17D, B16.34, ASME VIII Ends according to ASME B16.5, B16.25 Anti-blowout stem Antistatic device Double block and bleed Self-relieving (only if trunnion type) Fire safe according to ISO 10497, API 607, API 6FA, BS Bolted body, top entry or fully welded design High pressure testing according customer specification	Ends according to custom design Double piston effect seats One seat self-relieving and one seat double piston effect Emergency sealant injection on seat and/or stem sealings Stem extension Bonnet extension Metal to metal seat Body Lining Weld overlay on seat pocket and/or stem pocket area Weld overlay on wetted parts ROV Receptacle according to ISO 13628
