Floating

Floating

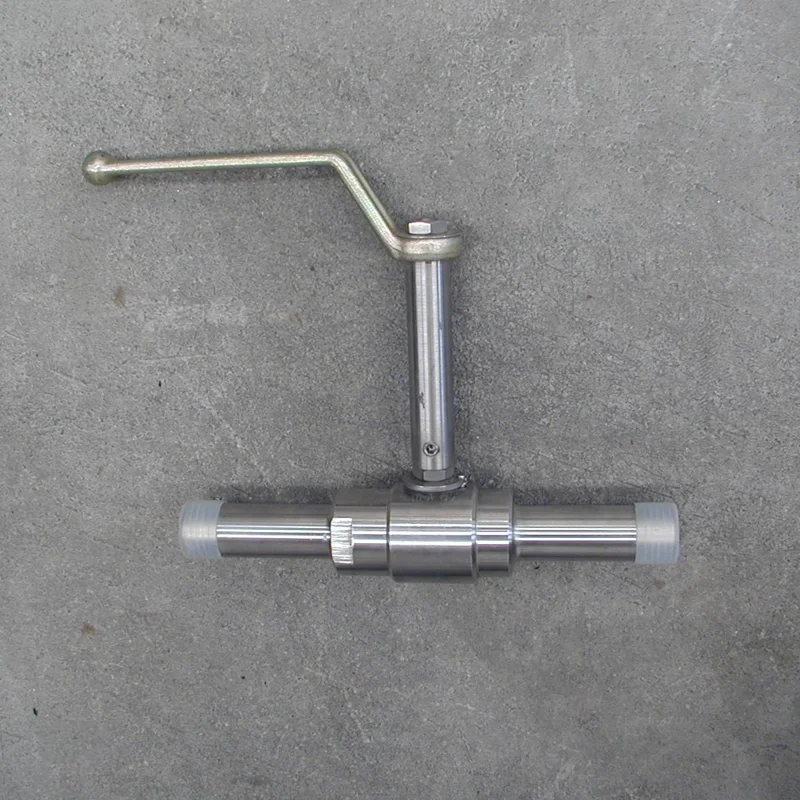

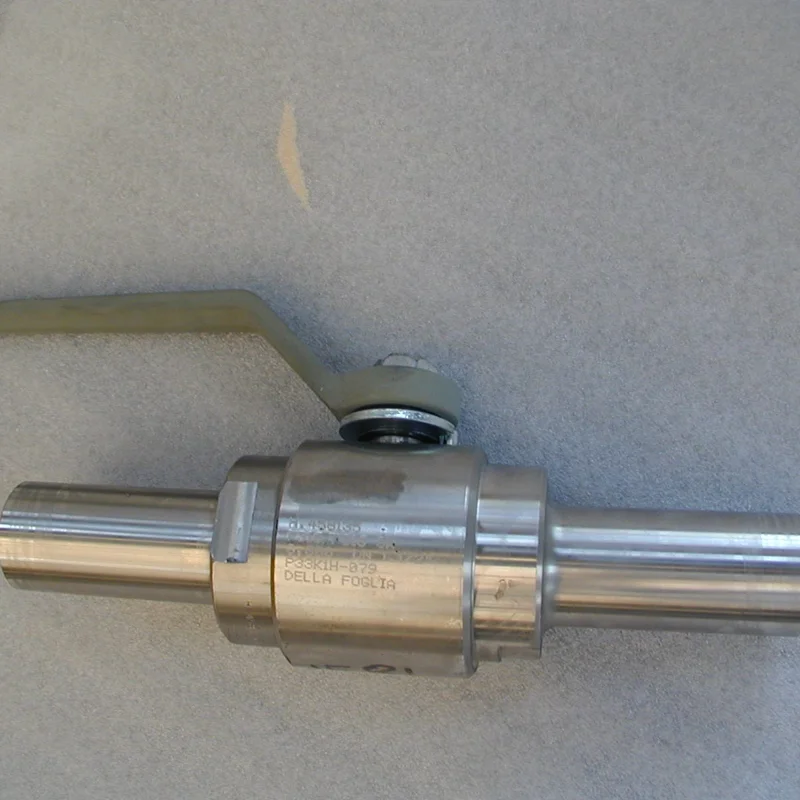

  • SW & NPT ends / flanged / pups

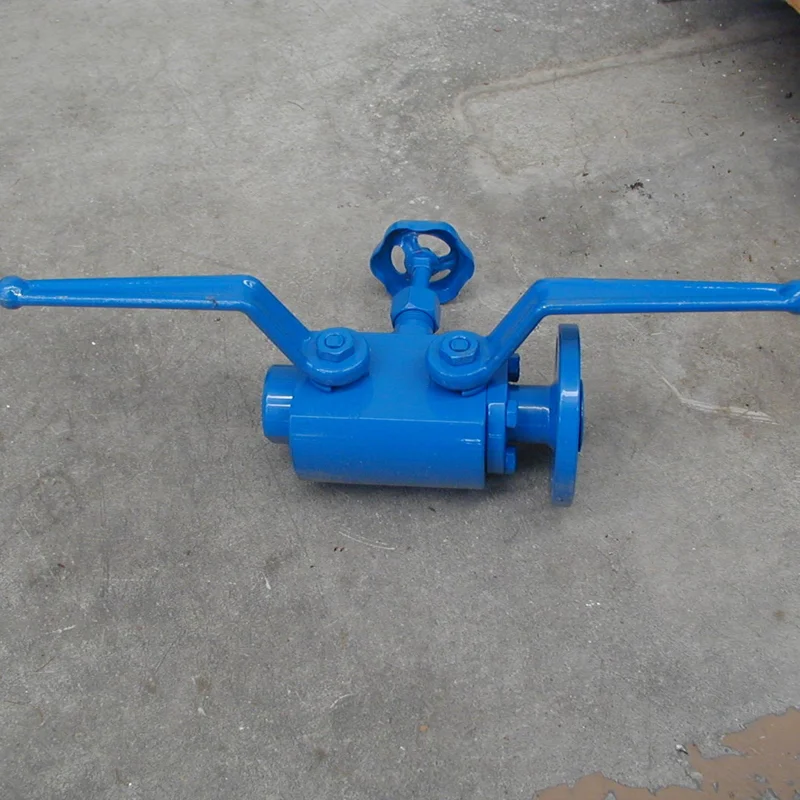

  • Single or double ball
  • Side or top entry
  • Full or reduced bore.
  • From ½” to 6”
  • Class from 150 up to 2.500

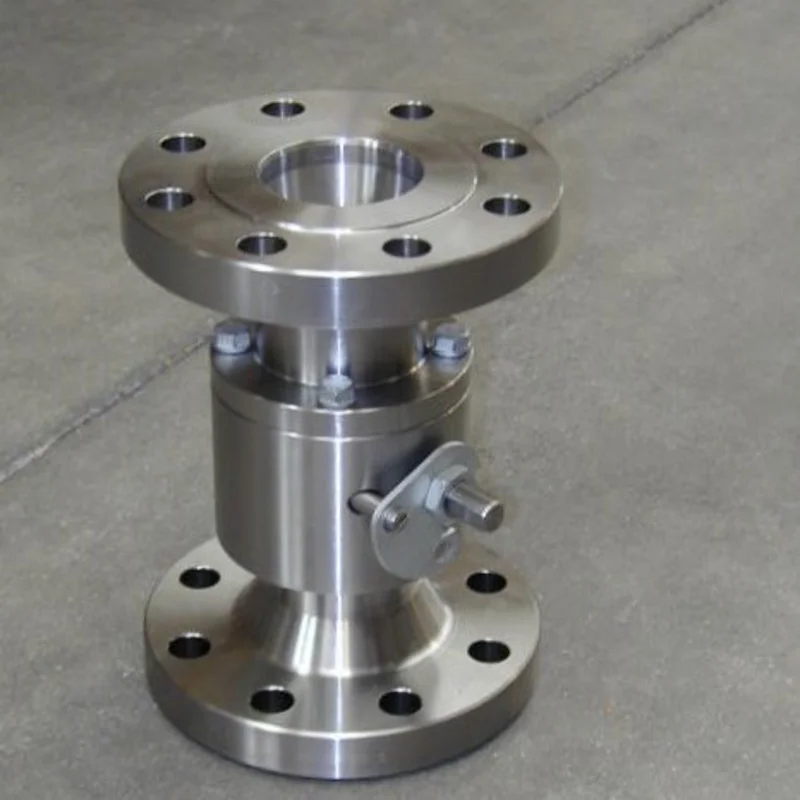

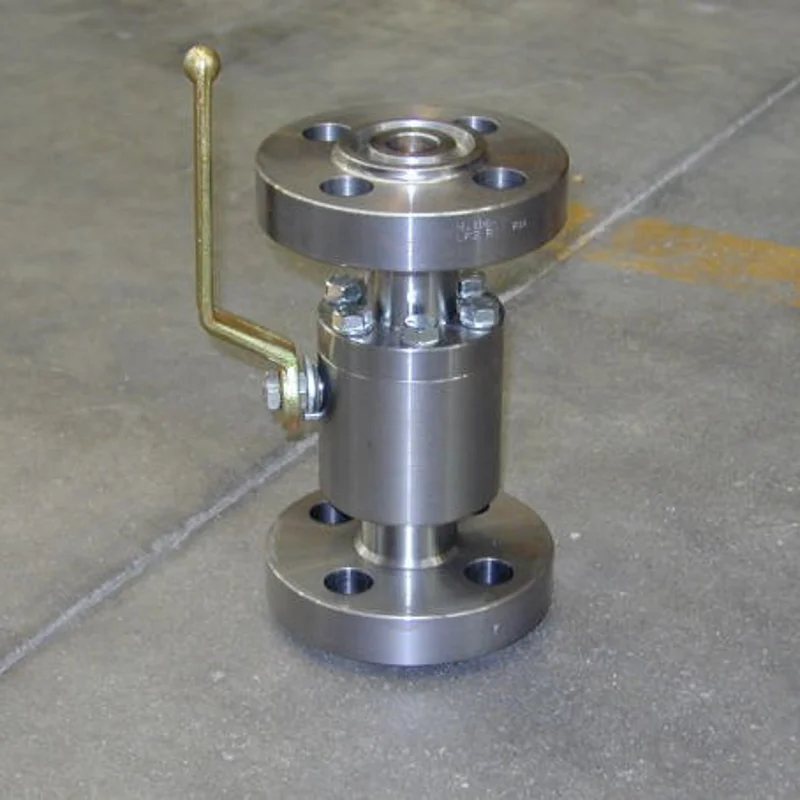

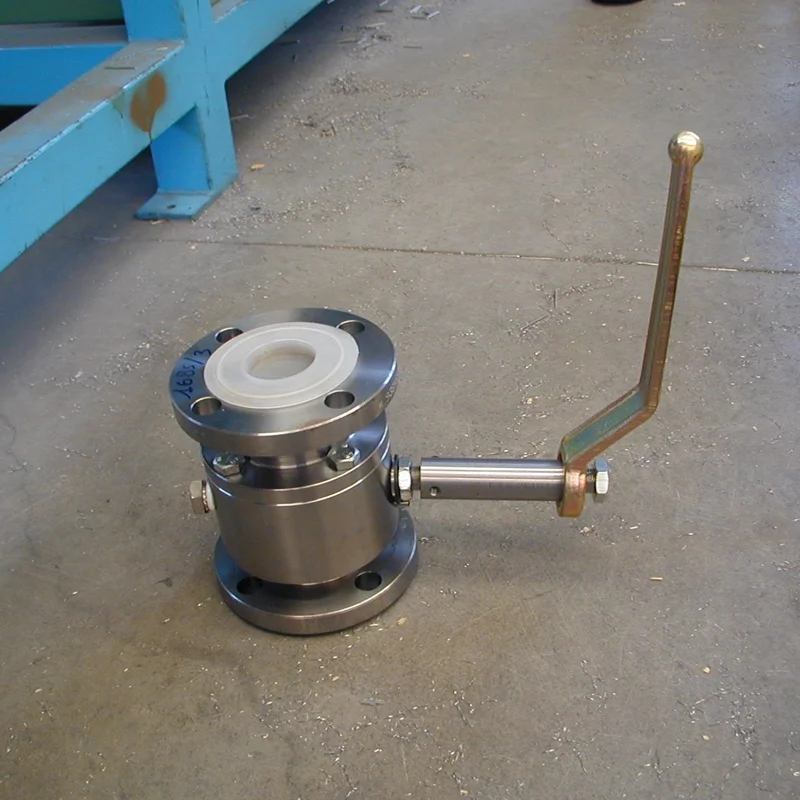

In floating ball valves design the ball is supported by the seats. Under pressure, the ball is pushed against the seat. The range of Della Foglia floating ball valves includes side or top entry, bolted body or threaded body. Materials of construction are carbon steel, stainless steel or any exotic alloy.

Standard Features Optional features
  • Design according to API 6D, API 6A, API 6DSS, B16.34, ASME VIII, ENI ISO 17292
  • Ends according to ASME B16.5, B16.25, ASME B16.47
  • Anti-blowout stem
  • Antistatic device
  • Fire safe according to ISO 10497, API 607, API 6FA, BS 6755-2
  • Carbon steel, stainless steel or any exotic alloy
  • Ends according to custom design

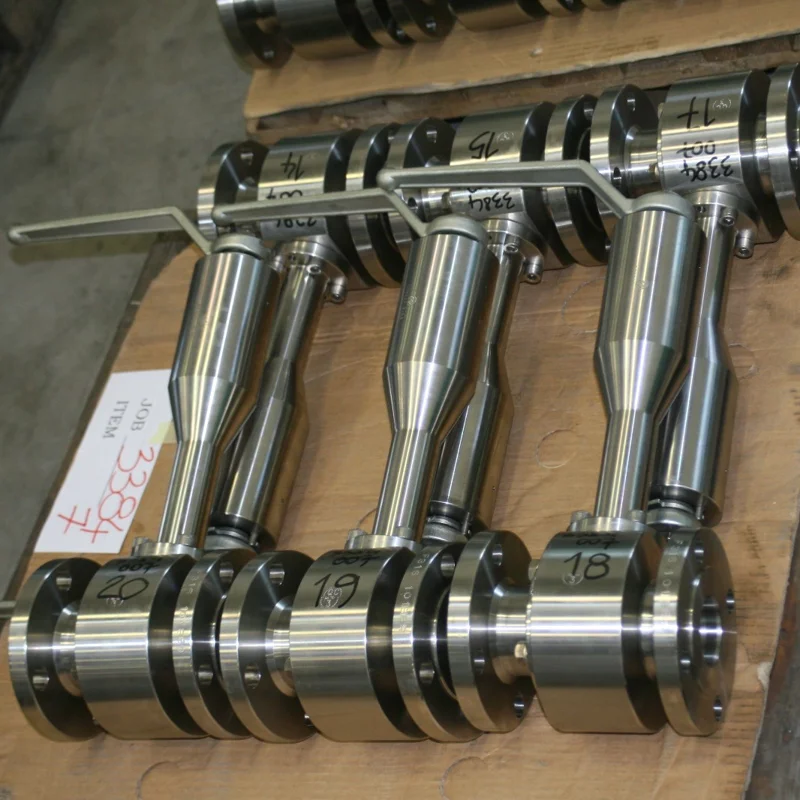

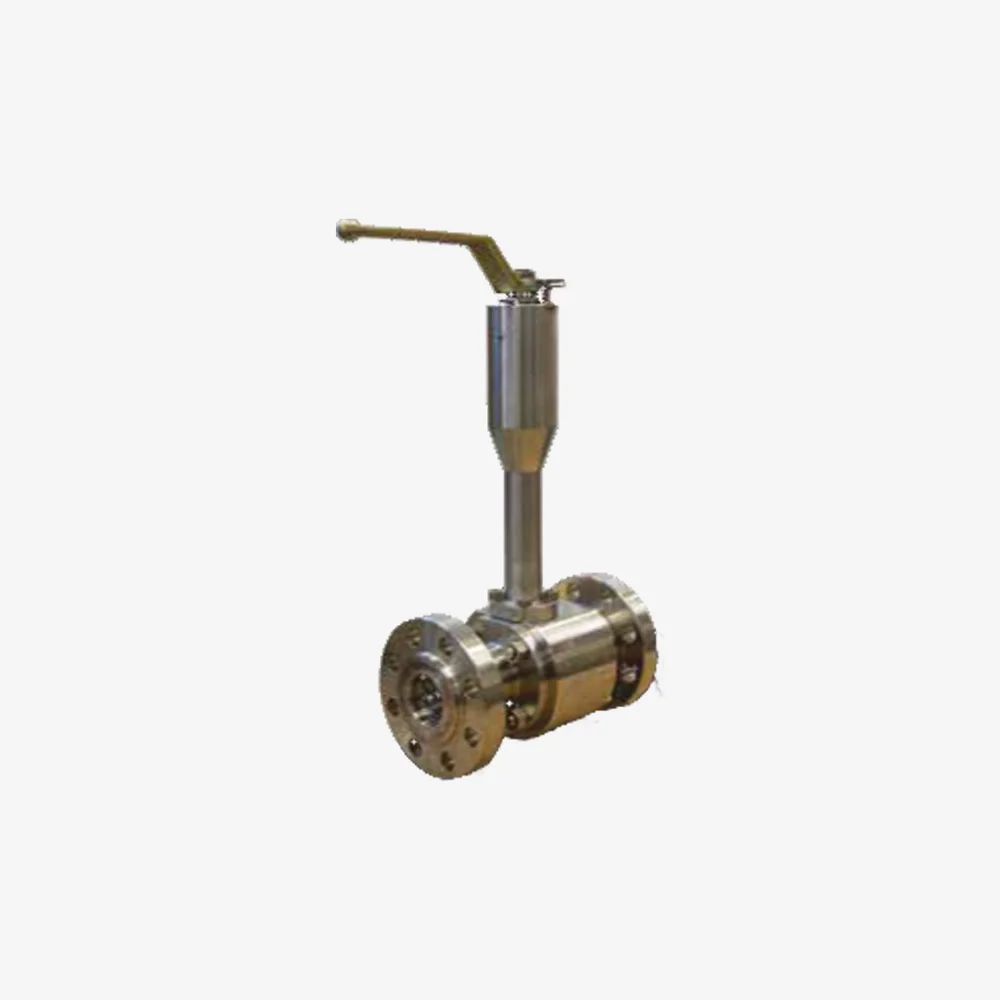

  • Bonnet extension
  • Stem extension
  • Metal to metal seated
  • Internal lining
